Cable Lug Long Barrel

The long barrel cable terminal lug provides enhanced crimping length, which ensures a stronger mechanical connection and reduced resistance. This design is particularly useful for high-vibration applications or where increased conductivity is required. The extended barrel allows for multiple crimps, enhancing durability and performance, especially in heavy-duty applications. It is ideal for use in power distribution systems, heavy machinery, and environments that demand more robust connections.

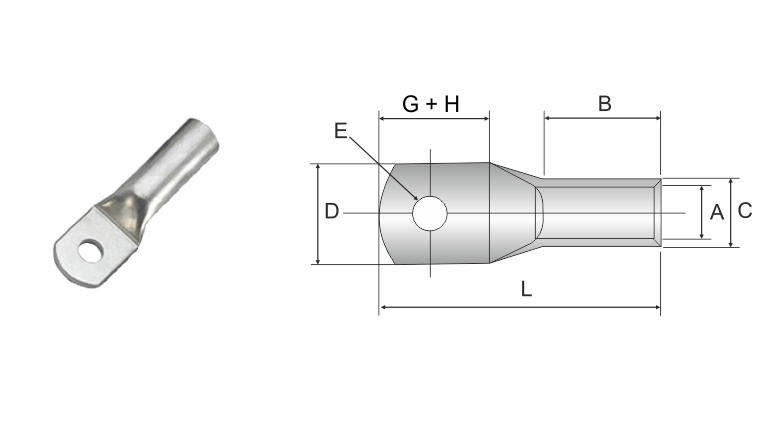

Part No.	Cable Size mm2	Stud Hole Size	Cable Lug Dimension (mm)
		E	A	C	D	B	G	H	L
CTLB1.506	1.5	6.5	1.8	3.7	4.726	10	6	6	25
CTLB2.506	2.5	6.5	2.5	4.0	5.425	12	6	6	27
CTLB4.006	4	6.5	3.2	4.8	6.624	12	6	6	27
CTLB6.006	6	6.5	3.8	5.5	7.666	15	6	7	33
CTLB6.008	6	8.5	3.8	5.5	7.666	15	8	9	37
CTLB1006	10	6.5	4.5	6.2	8.765	15	6	7	33
CTLB1008	10	8.5	4.5	6.2	8.765	15	7	8	35
CTLB1606	16	6.5	5.5	7.1	10.235	18	6	8	37
CTLB1608	16	8.5	5.5	7.1	10.235	18	8	8	39
CTLB2508	25	8.5	6.8	8.8	12.676	22	9	10	46
CTLB2510	25	10.5	6.8	8.8	12.676	22	11	12	50
CTLB3508	35	8.5	8.2	10.6	15.274	22	9	10	46
CTLB3510	35	10.5	8.2	10.6	15.274	22	11	12	50
CTLB5010	50	10.5	9.5	12.4	17.815	25	11	12	54
CTLB5012	50	12.5	9.5	12.4	17.815	25	11	12	54
CTLB7010	70	10.5	11.2	14.7	21.084	25	13	13	58
CTLB7012	70	12.5	11.2	14.7	21.084	25	13	13	58
CTLB9510	95	10.5	13.7	17.4	25.209	30	14	14	67
CTLB9512	95	12.5	13.7	17.4	25.209	30	14	14	67
CTLB12012	120	12.5	15	19.4	27.950	35	15	15	77
CTLB12014	120	14.5	15	19.4	27.950	35	15	15	77
CTLB12016	120	16.5	15	19.4	27.950	35	15	15	77
CTLB15012	150	12.5	16.5	21.2	30.605	40	16	16	85
CTLB15014	150	14.5	16.5	21.2	30.605	40	16	16	85
CTLB15016	150	16.5	16.5	21.2	30.605	40	16	16	85
CTLB18512	185	12.5	18.5	23.5	34.045	45	16	16	92
CTLB18514	185	14.5	18.5	23.5	34.045	45	16	16	92
CTLB18516	185	16.5	18.5	23.5	34.045	45	16	16	92
CTLB24012	240	12.5	21	26.5	38.470	50	20	20	104
CTLB24014	240	14.5	21	26.5	38.470	50	20	20	104
CTLB24016	240	16.5	21	26.5	38.470	50	20	20	104
CTLB30012	300	12.5	23.5	30	43.395	55	22	22	114
CTLB30014	300	14.5	23.5	30.0	43.395	55	22	22	114
CTLB30016	300	16.5	23.5	30.0	43.395	55	22	22	114
CTLB40016	400	17	28.5	36.5	52.745	65	26	26	135
CTLB40020	400	21	28.5	36.5	52.745	65	26	26	135
CTLB50016	500	17	30	39	56.100	72	28	28	146
CTLB50020	500	21	30	39	56.100	72	28	28	146
CTLB63016	630	17	35	45	64.950	80	33	33	164
CTLB63020	630	21	35	45	64.950	80	33	33	164
CTLB80020	800	21	39	50.6	72.830	98	40	35	190
CTLB100020	1000	21	43	56.2	80.710	125	45	45	235

Technical Data

• All dimensions in mm
• Material: cable lugs manufactured from electrolytic copper
• Range: cable lug range from 1.5 to 1000 mm2 with di erent stud hole
• Finish: lead free electro tin plated to prevent atmospheric corrosion
• Application: used for termination of copper conductors to equipment, transformers, busbars & switch gear panels.
